| Place of Origin: | CHINA |
| Brand Name: | MILE |
| Certification: | ISO, CE, SGS |
| Model Number: | MILE-PVC |
| Minimum Order Quantity: | 100 square meters |
|---|---|
| Price: | FOB Qingdao USD1.00-5.00 per square meters |
| Packaging Details: | kraft bag |
| Delivery Time: | 7 -10days after order confirmation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 70000 square meters per month |
| Material: | PVC | Color: | Bule ,pink |
|---|---|---|---|
| Width: | 1.0-3.0m | Thickness: | 1.5mm |
| Surface: | Smooth, Embossed Or Customized | Application: | Swimming Pool |
| Length: | 20m, 25m Or Customized |
Good quality ,factory in China PVC material waterproofing membrane ,1.5mm thickness, ASTM
Product Description:

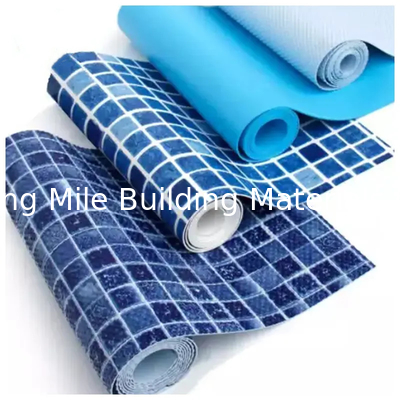

PVC Pool liner is one kind of Polyvinyl chloride liner, reinforced with polyester mesh, mixing additives, stabilizers, etc. The product is corrosion-resistant and chlorine-resistant. It has excellent size stability and lower thermal expansion coefficient, so it has strong adaptability to the external environment
All kinds of single colors and different pattern are available
Membrane sizes
Technical Date (GB28935-2012)
| No. | Items | Technical Data | |
| 1 | Weight per square meter (kg/m2) | 1.9(±10%) | |
| 2 | Density (g/m3) | 1.23(±10%) | |
| 3 | Low Temperature Flexibility | No cracking | |
| 4 | Flame Resistance | B1 | |
| 5 | Impermeability | No leaking | |
| 6 | Tensile Strength | MD(N/cm) | ≥180 |
| TD(N/cm) | ≥180 | ||
| 7 | Breaking Elongation | MD(%) | ≥120 |
| TD(%) | ≥120 | ||
| 8 | Tear Strength | MD(%) | ≥75 |
| TD(%) | ≥75 | ||
| 9 | Heat treatment dimensional change rate | MD(%) | ≤0.2 |
| TD(%) | ≤0.2 | ||
Features
1.Exposed to sunshine: UV rays resistance, Long life, aging-resistant, can be over 20 years
2. Suitable for pools in all shapes, easy and quick installation
3. Easy to re-install, not easy to breed bacteria
4. Flexible and waterproof, high elasticity. No need drainage in winter
5. Good stain resistance, simple and easy maintenance
6. Heat expands and cold contracts: synchronization
7. Structure cracking: performance will not be affected
6.Storage and Transportation:
Stored membranes in dry and cool condition,Prevent from sunlight, rain,low temperature and chemicals
Application

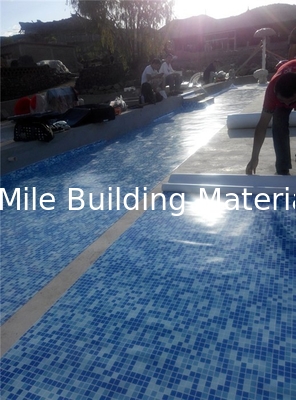

Ideal for the walls and bottoms of swimming pools in all kinds of shapes and types, including public
or private pools, SPA pools and other pools
Advantage compared with ceramic tile :
1) Long life, aging-resistant, roofing materials can be over 20 years, and if underground use it can be 50 years.
2) High tensile strength, high extensibility, small dimensional change when heat treatment.
3) Good flexibility under low temperature, good variability to be adaptable to temperature difference of the environment.
4) Good rootage penetration resistibility, suitable to be used for planted roof.
5) Good perforating resistibility.

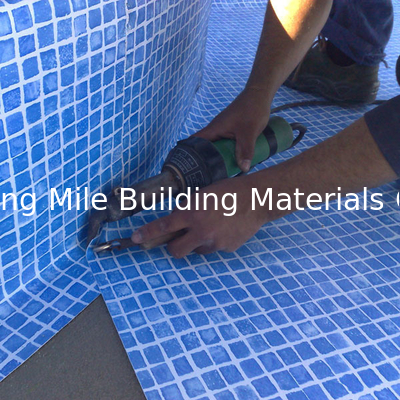

6) Convenient for construction, weldable, firm and secure, environmental protective and pollution free.
7) Strong chemical resistance, adaptable to special situations.
8) Good plasticity, convenient and fast treatment on delicate parts of corners and edges.
9) Easy maintenance, low cost.
Product features:
1 Good weld-ability, stain resistance, oil resistance, abrasion resistance, scratch resistance, etc.
2 Ideal for replacing pool lining because of easy installation and low cost in comparison with
replacing tiles or standard cladding.
3 Treated with UV-inhibitors stabilized against UV-rays cold resistant and resistance to weather
4 Perfectly adaptable to any shape of pool, compatible with concrete, prefabricated or steel panel
pools, can also be installed in pools with overflow.
Package and shipping:
