| Place of Origin: | CHINA |
| Brand Name: | Mile |
| Certification: | ISO, CE, SGS |
| Model Number: | Mile-PRM |
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | FOB Qingdao USD2.00-5.00 square meter |
| Packaging Details: | Kraft packing |
| Delivery Time: | 7 - 10 days after order confirmation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
| Features: | Reinforced With Fabric, Anti-UV, Heating Weldable, Excellent Resistance To Chemicals | Material: | PVC |
|---|---|---|---|
| Application: | Industrial And Civil Building Waterproof, Single Ply Roofing Membrane | Sample Request: | Free |
| Surface: | White Color | Width: | 1.0m, 1.5m, 2.0m, 2.5m, 3.0m |
| Thickness: | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm | Roll Length: | 20m Or Customized |
| Packing: | Kraft Packing | Certification: | ISO, BBA, CE, SGS |

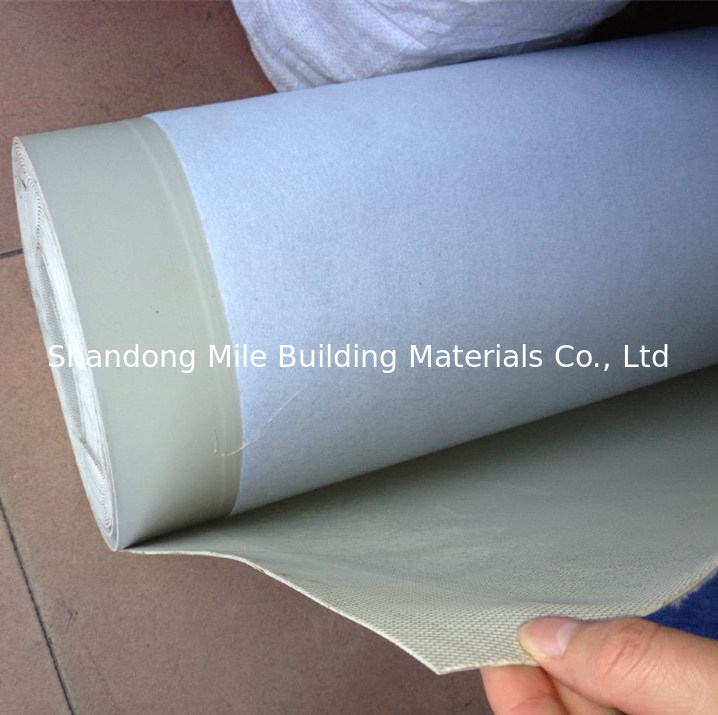

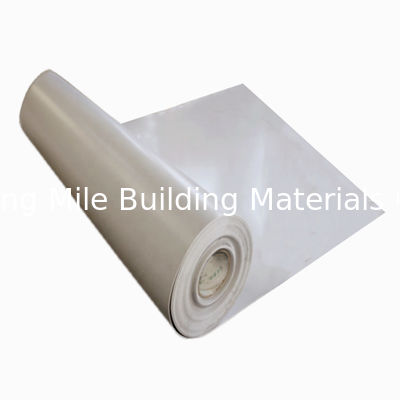

Product Description:
Polyvinyl chloride the pvc waterproofing plastic membrane is a kind of excellent performance of polymer waterproof material, PVC resin as the main raw material,add all kinds of special additive and anti-aging composition,the use of advanced equipment and advanced technology extrusion rolling is made.The product has the tensile strength and elongation high shrinkage of small, low temperature soft good,long life and other advantages, stable performance, reliable quality,construction is convenient.
| Type |
PVC roofing membrane
|
| Application |
Industrial and civil building waterproof |
| Thickness |
0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
|
| Width |
1.0m, 1.5m, 2.0m, 2.5m, 3.0m
|
| Length |
20m or customized
|
| Color |
White
|
| Packing |
Kraft Bag
|
| No. | Items | Technical Data | ||||||
| H | L | P | G | GL | ||||
| 1 | Upper Resin Thickness | ≥0.40mm | ||||||
| 2 | Tensile Property | Max. Tension (N/cm) | - | ≥120 | ≥250 | - | ≥120 | |
| Tensile Strength (MPa) | ≥10 | - | - | ≥10 | - | |||
| Elongation /Max. Tension | - | - | ≥15% | - | - | |||
| Breaking Elongation | ≥200% | ≥150% | - | ≥200% | ≥100% | |||
| 3 | Dimensional Changing when Heating | ≤2.0% | ≤1.0% | ≤0.5% | ≤0.1% | ≤0.1% | ||
| 4 | Low Temperature Flexibility | -25℃, No cracking | ||||||
| 5 | Impermeability | 0.3Mpa, 120 Minutes, No leaking | ||||||
| 6 | Shock Resistance | 0.5kg·m, No leaking | ||||||
| 7 | Static Load Resistance | - | - | 20kg, No leaking | ||||
| 8 | Joint Peel Strength (N/mm) | ≥4.0 | ≥3.0 | |||||
| 9 | Right-angled Tearing Strength (N/mm) | ≥50 | - | - | ≥50 | - | ||
| 10 | Trapezoid Tearing Strength (N) | - | ≥150 | ≥250 | - | ≥220 | ||
| 11 | Water Absorption Coefficient | After dipping | 70℃, 168 hours, ≤4.0% | |||||
| After sun-cure | 70℃, 168 hours, ≥-0.40% | |||||||
| 12 |
Thermal Aging (80℃) |
Time | 672 hours | |||||
| Appearance | No bubbling, cracking, layering, cohering or holes | |||||||
| Holding / Max. Tension | - | ≥85% | ≥85% | - | ≥85% | |||
| Tensile Strength Holding | ≥85% | - | - | ≥85% | - | |||
| Elongation Holding / Max. Tension | - | - | ≥80% | - | - | |||
| Breaking Elongation Holding | ≥80% | ≥80% | - | ≥80% | ≥80% | |||
| Low Temperature Flexibility | -20℃, No cracking | |||||||
| 13 | Chemical Resistance | Appearance | No bubbling, cracking, layering, cohering or holes | |||||
| Holding / Max. Tension | - | ≥85% | ≥85% | - | ≥85% | |||
| Tensile Strength Holding | ≥85% | - | - | ≥85% | - | |||
| Elongation Holding / Max. Tension | - | - | ≥80% | - | - | |||
| Breaking Elongation Holding | ≥80% | ≥80% | - | ≥80% | ≥80% | |||
| Low Temperature Flexibility | -20℃, No cracking | |||||||
| 14 | Artificial Weathering Aging | Time | 1500 hours (single-ply roofing 2500 hours) | |||||
| Appearance | No bubbling, cracking, layering, cohering or holes | |||||||
| Holding / Max. Tension | - | ≥85% | ≥85% | - | ≥85% | |||
| Tensile Strength Holding | ≥85% | - | - | ≥85% | - | |||
| Elongation Holding / Max. Tension | - | - | ≥80% | - | - | |||
| Breaking Elongation Holding | ≥80% | ≥80% | - | ≥80% | ≥80% | |||
| Low Temperature Flexibility | -20℃, No cracking | |||||||
PVC membrane type:
| H type | Homogeneous PVC sheet |
| L type | with non-woven backing |
| P type | with woven mesh reinforcement |
| G type | with fiberglass reinforcement |
| GL type | with fiberglass reinforcement and non-woven backing |
Product Features:
1) Long life, aging-resistant, roofing grade can be over 20 years, and if underground use it can be 50 years.
2) High tensile strength, high extensibility, small dimensional change when heat treatment.
3) Good flexibility under low temperature, good variability to be adaptable to temperature difference of the environment.
4) Good rootage penetration resistibility, suitable to be used for planted roof.
5) Good perforating resistibility.
6) Convenient for construction, weldable, firm and secure, environmental protective and pollution free.
7) Strong chemical resistance, adaptable to special situations.
8) Good plasticity, convenient and fast treatment on delicate parts of corners and edges.
9) Easy maintenance, low cost.
Storage and Transportation:
